Wall Spot Lamp

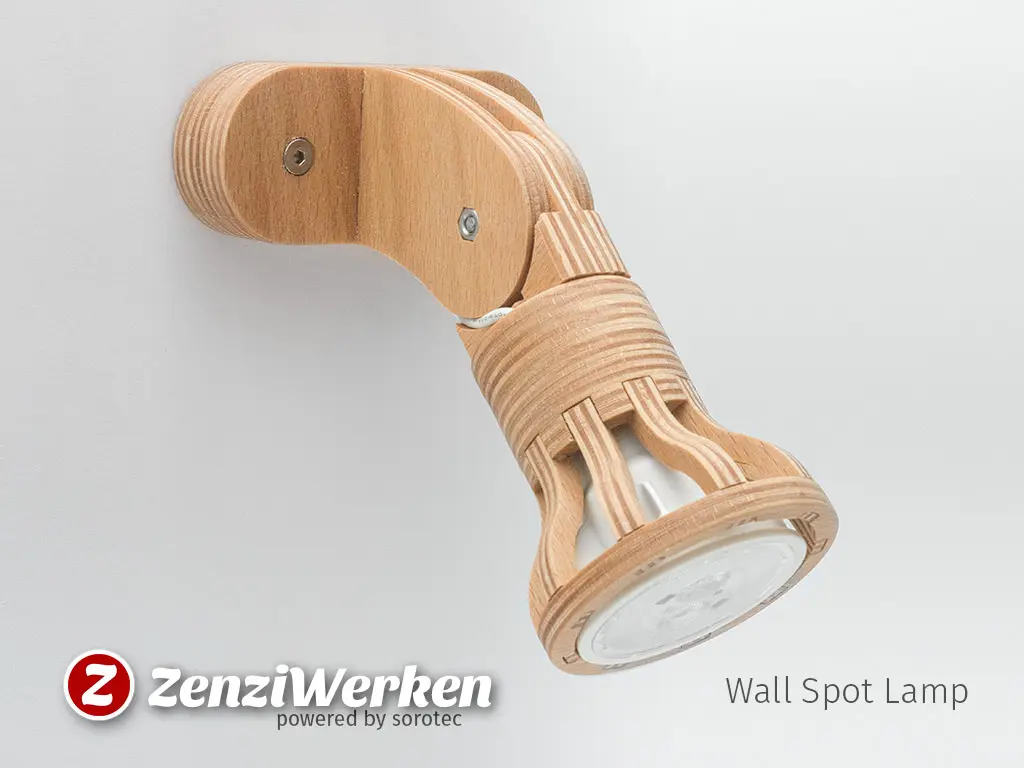

This tiltable wall spot lamp is intended to be used with a GU10 socket and mounted vertical, over a mirror in a bathroom for example. Even with ventilation openings using a classic halogen bulb might not be the best of all ideas, you should resort to a modern LED bulb. I got the ceramic socket from a hardware store for a few bucks. The cable was long enough to feed them through the foot.

This build was done from 6.3 mm beech plywood using a desktop cnc-machine by Stepcraft with a 1.2 mm spiral toothed end mill. A vacuum machine bed simplifies the process significantly because you don't need to camp the material, thus it stays pretty flat. Furthermore, I don't need tabs on the parts resulting in less sanding.

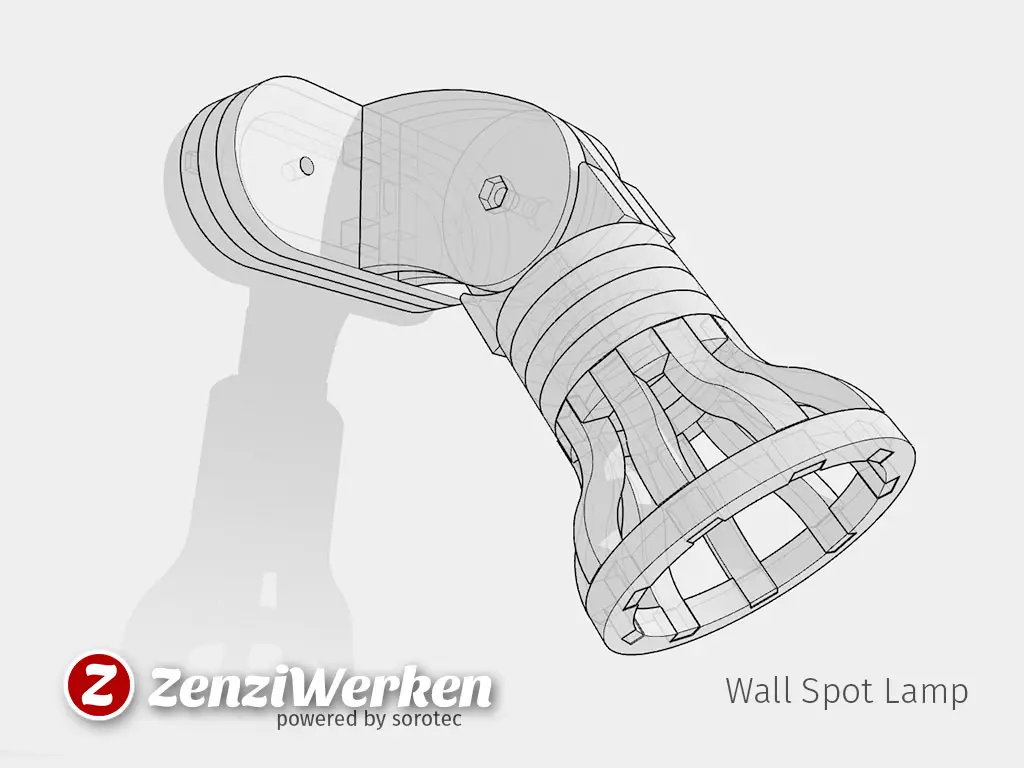

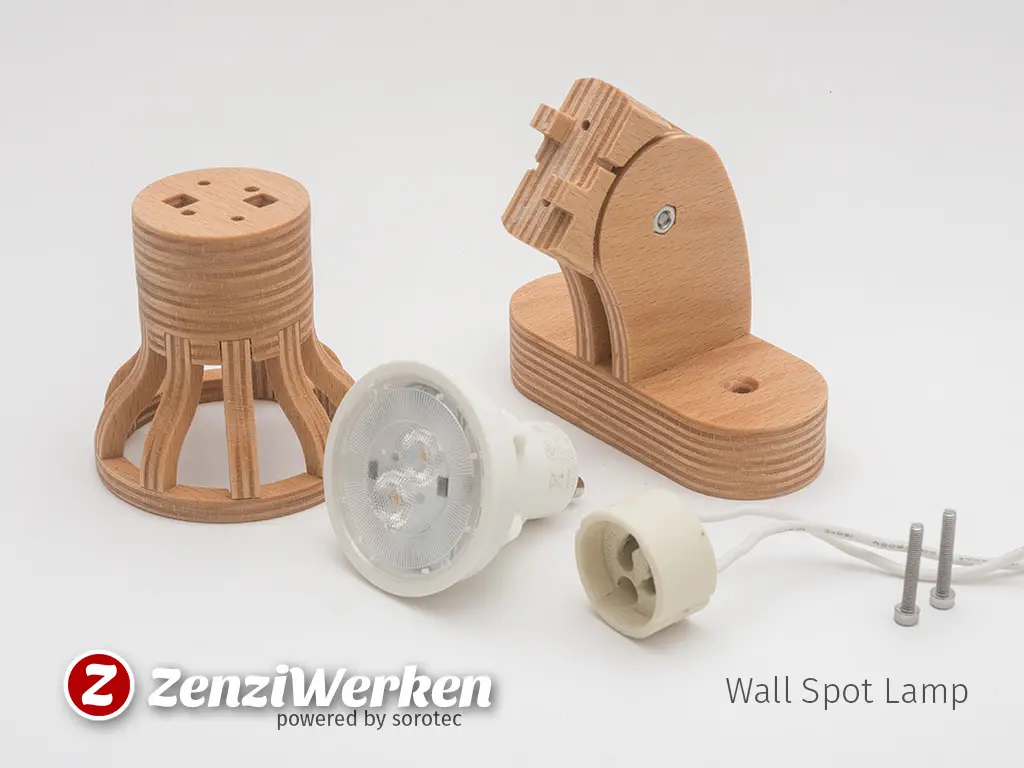

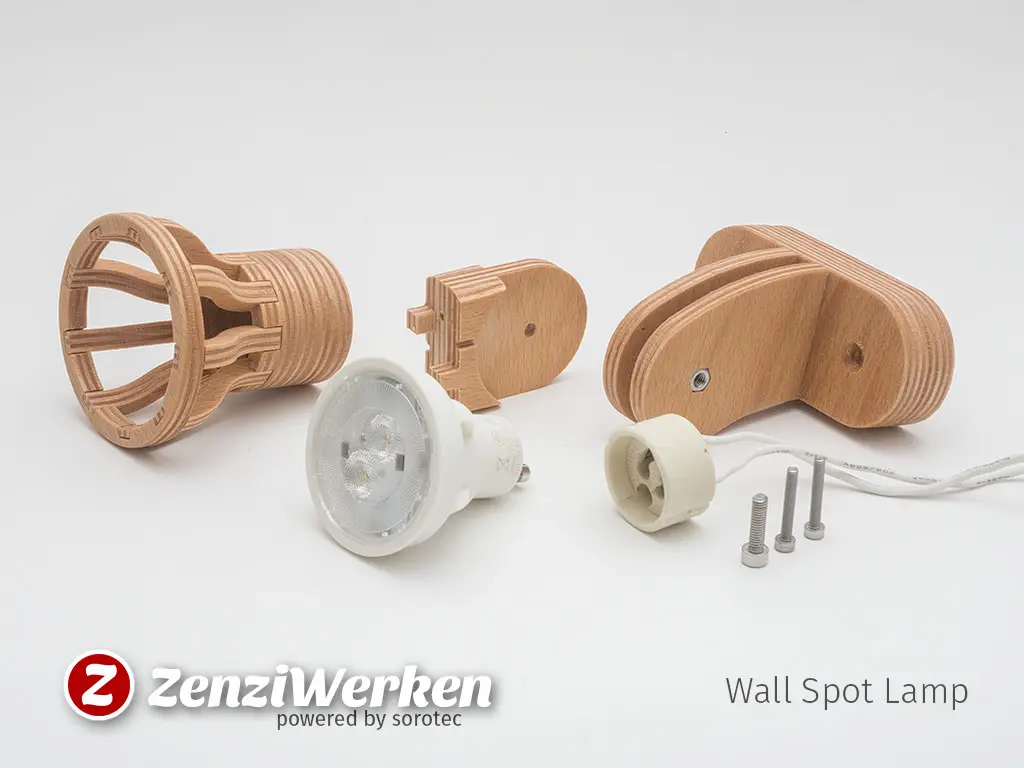

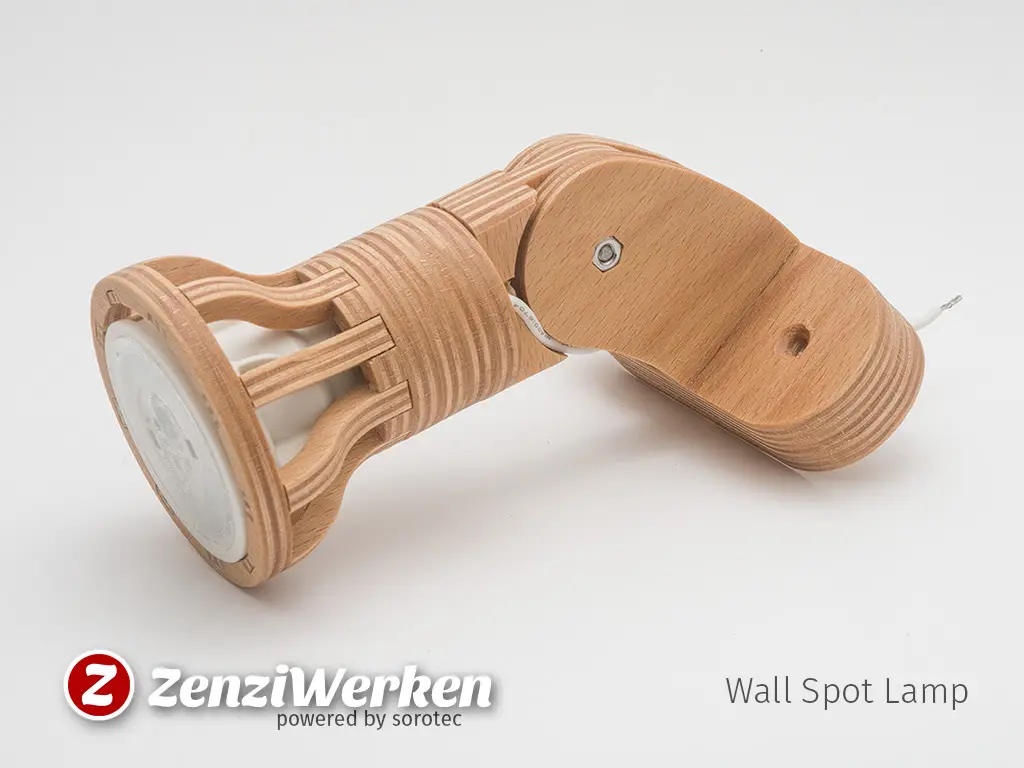

Wall-Spot-Lamp-1-Model Wall-Spot-Lamp-2-Parts Wall-Spot-Lamp-3-Assembly Wall-Spot-Lamp-4-Built Wall-Spot-Lamp-5-Usage
