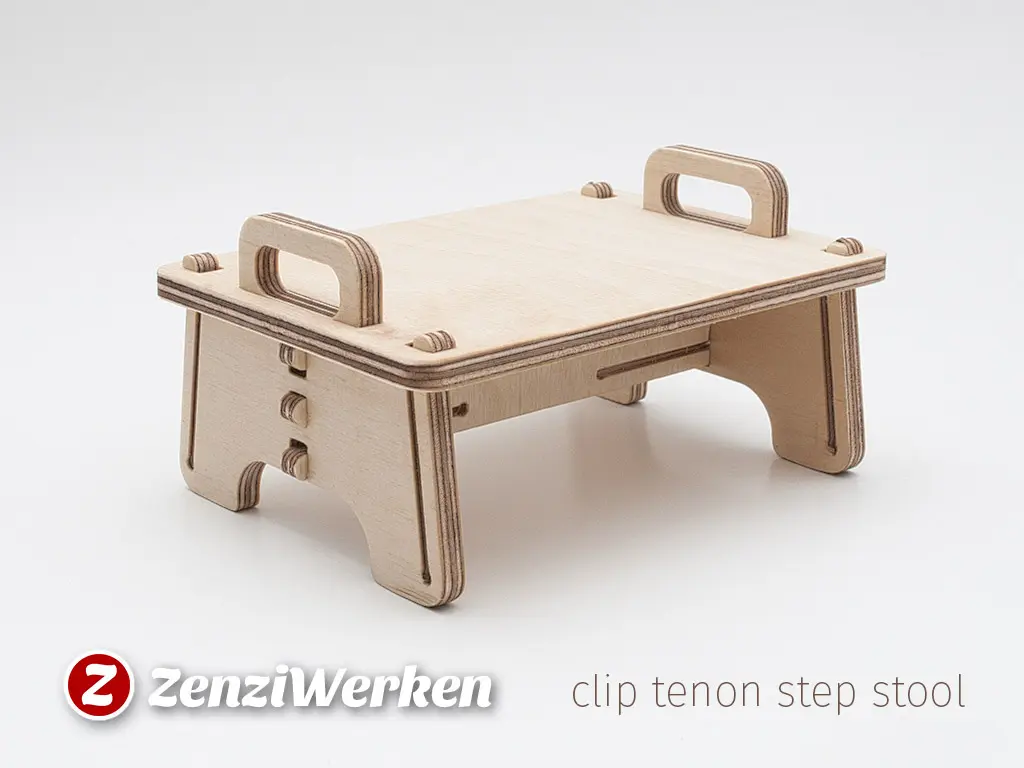

Clip Tenon Step Stool

This step stool shows all the features you'd expect from a digital fabrication design:
  • sustainable material (plywood)
  • material-saving cnc-machinable
  • flat pack shipping and storage
  • tool and glue free assembly
  • simple and rock solid

I did three design iterations to get the construction of clip tenons right. Each version gained in stability. The validation was done on scaled down models.

The parts will fit a 350 mm x 600 mm piece of 15 mm baltic birch wood. One version of the drawing is prepared for machining with overcuts for a 5 mm diameter tool.

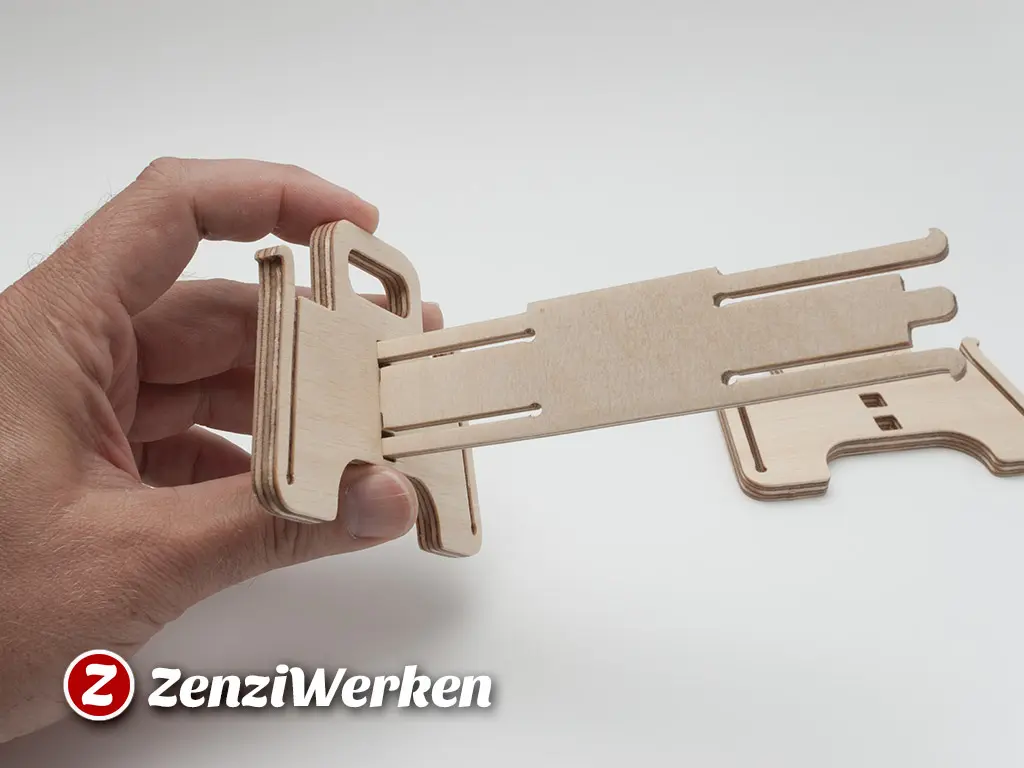

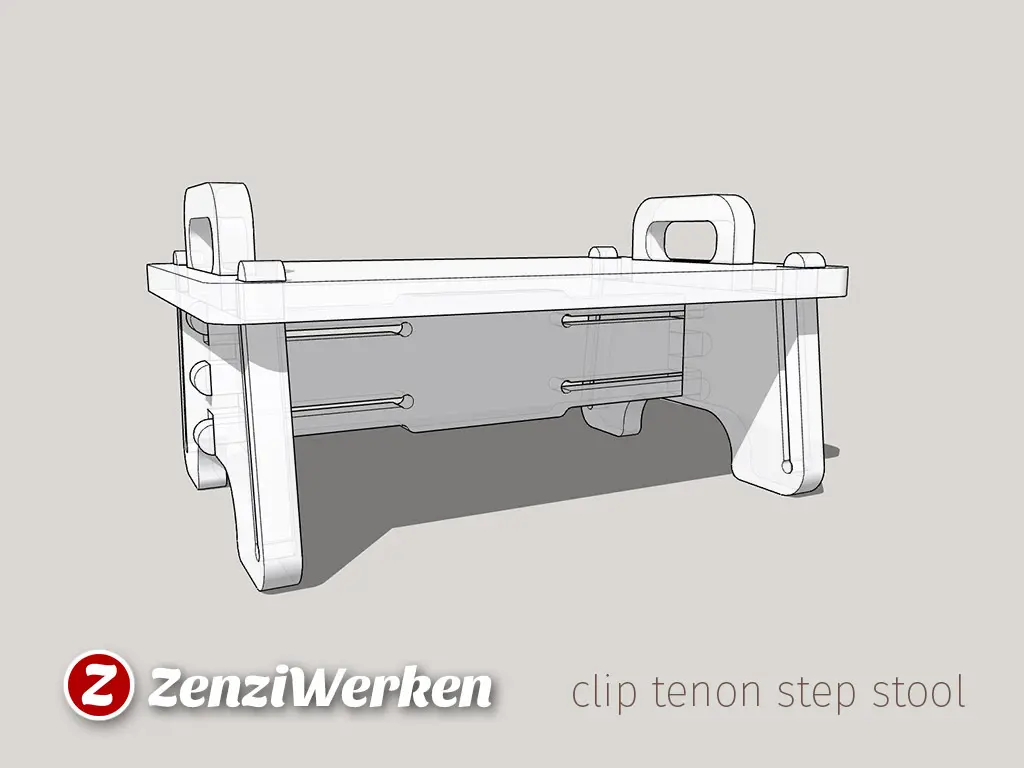

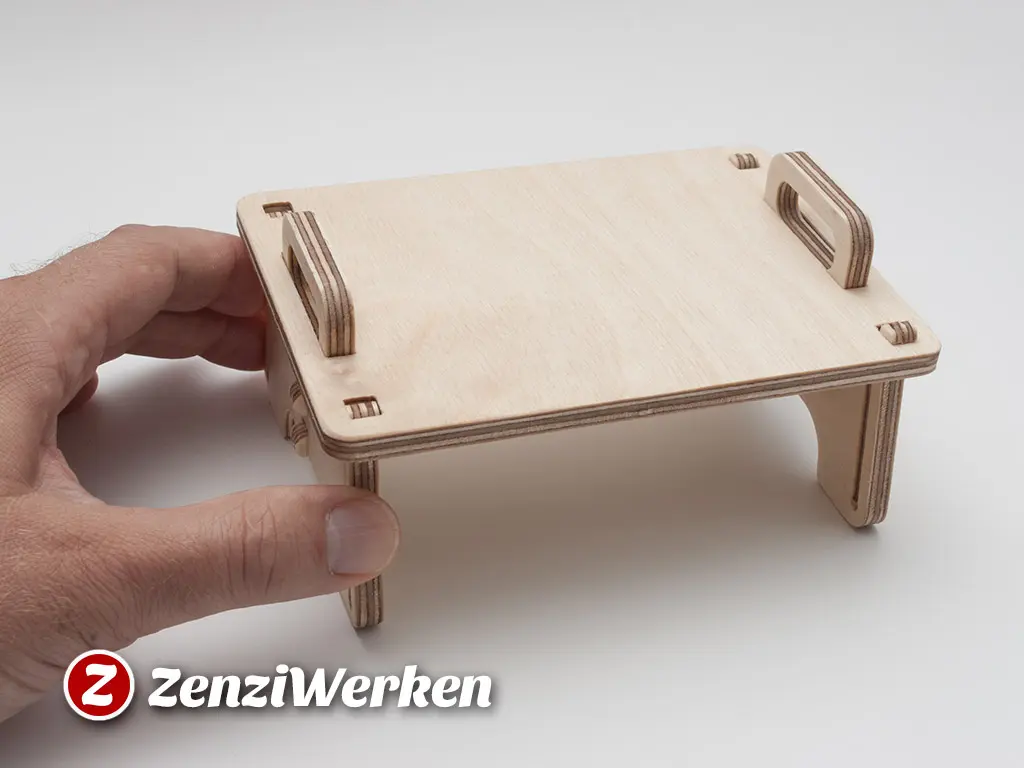

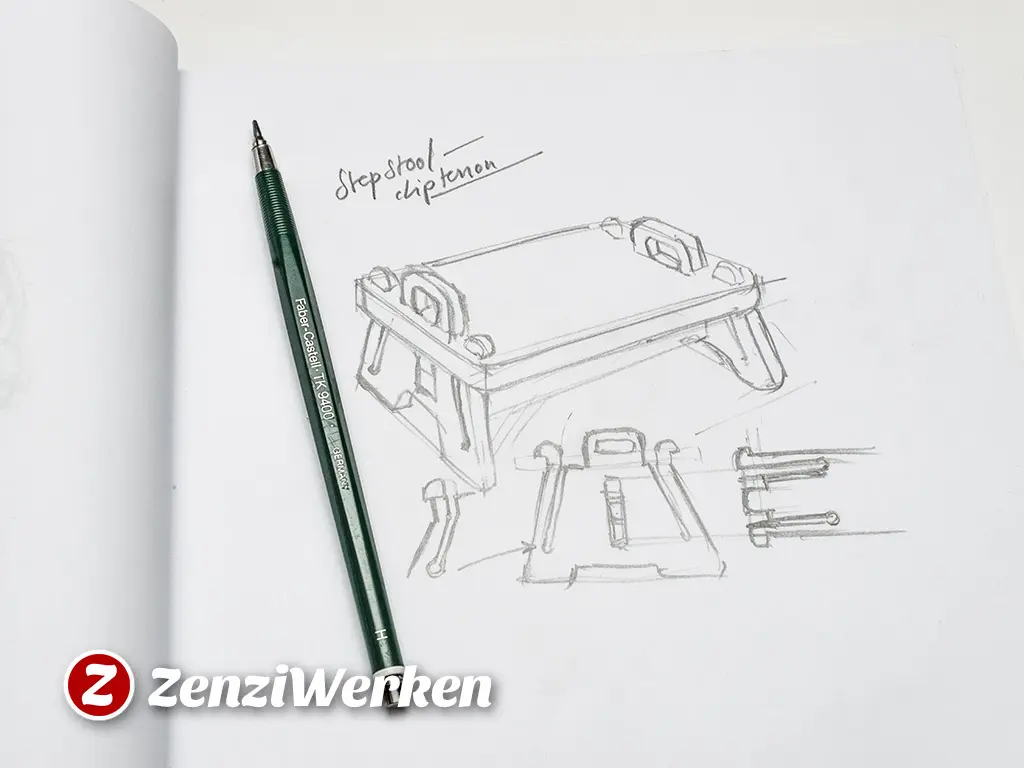

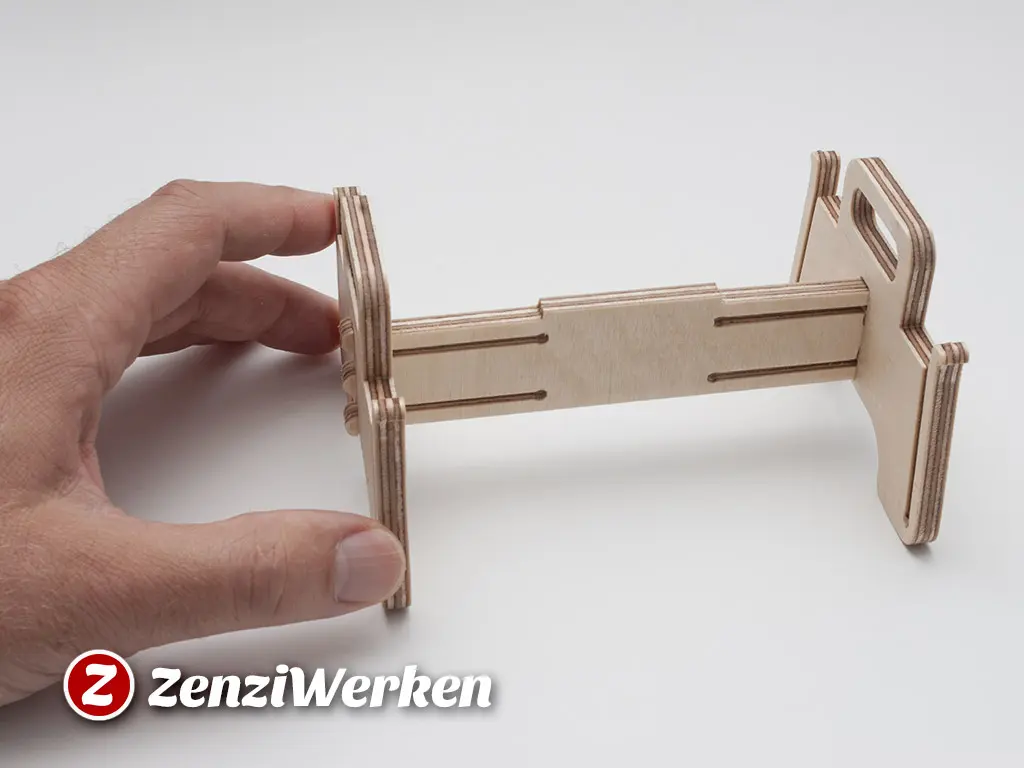

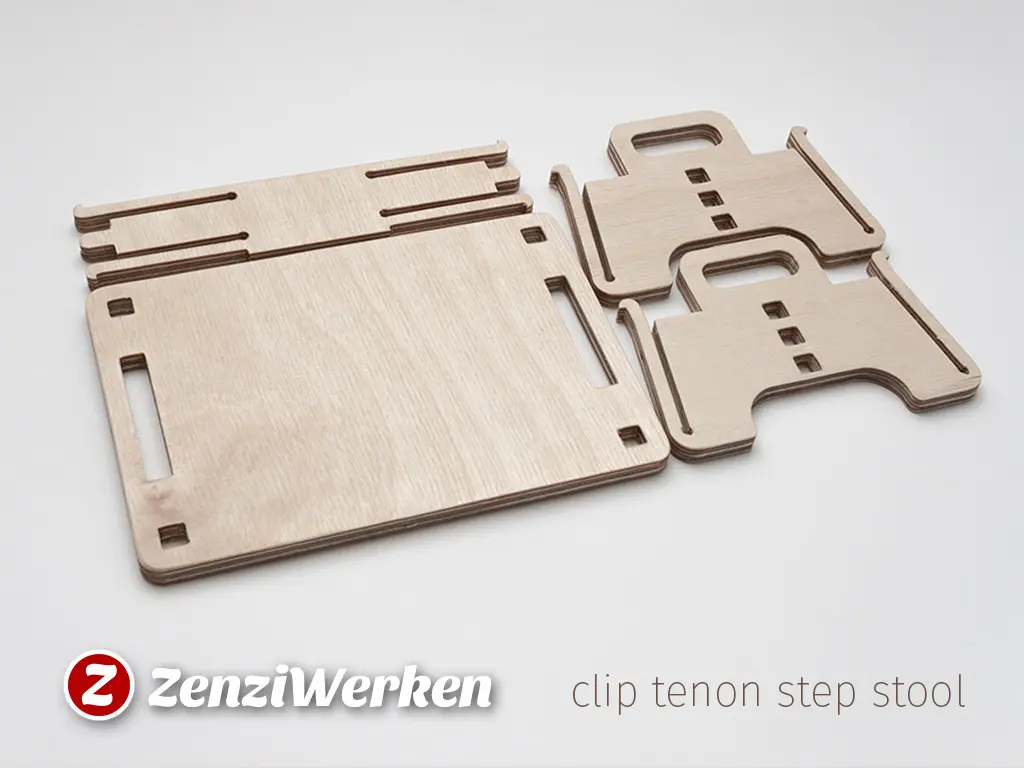

loose sketch CAD-model flatpack for shipping and storage toolfree assembly toolfree assembly toolfree assembly simple and rock solid
